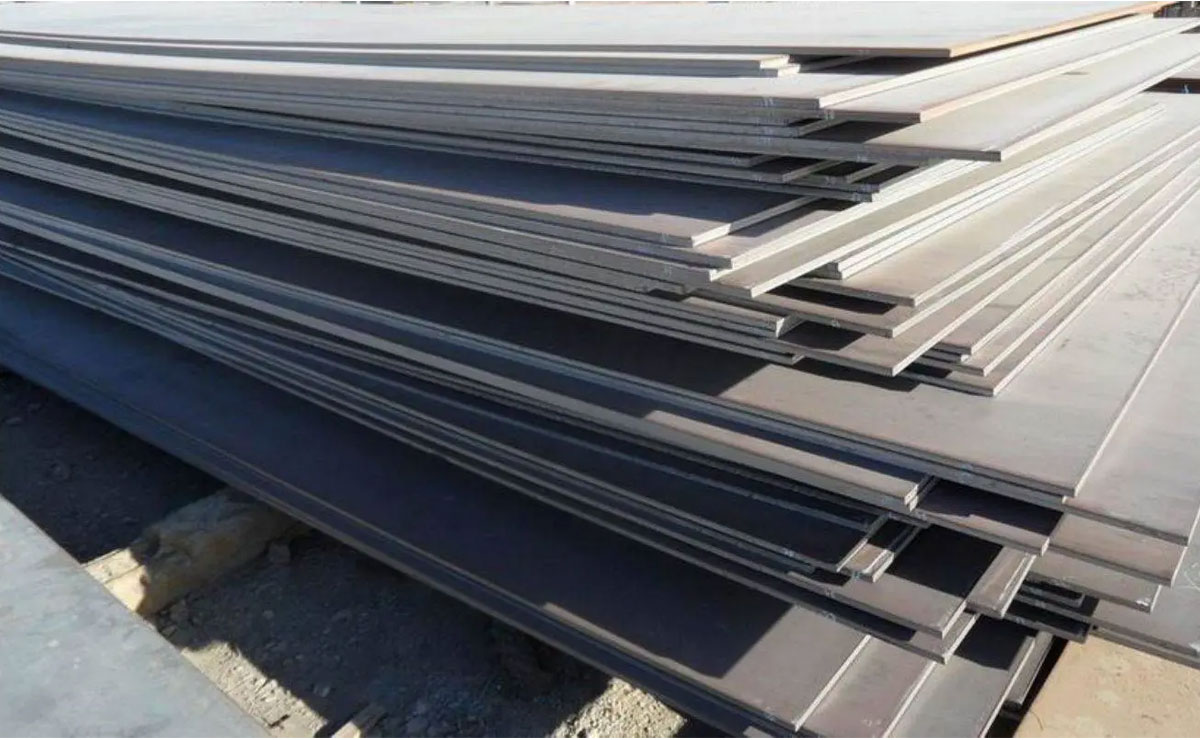

IS 2062 GRADE A STEEL PLATE SPECIFICATION :
Item : Hot Rolled Medium and High Tensile Structural Steel - IS 2062 GR A
Thickness : 5mm-150mm
Width : 1000mm-4500mm
Length : 3000mm-18000mm
Mild Steel IS 2062 Grade A Plates Chemical Composition
| Grade |
C |
Mn |
S |
P |
Si |
| IS 2062 Gr A |
0.23 |
1.5 |
0.05. |
0.05 |
0.4 |
IS 2062 Gr A MS Plates Mechanical Properties
| Grade |
Yield strength (Mpa)(Min) |
Tensile strength (Mpa)(Min) |
Elongation (%) |
| ＜20mm |
20mm-40mm |
＞40mm |
| IS 2062 GR A |
250 |
240 |
230 |
410 |
23 |
IS 2062 Plate Specification
Item : Hot Rolled Medium and High Tensile Structural Steel - IS 2062 Gr B
Thickness : 5mm-150mm
Width : 1000mm-4500mm
Length : 3000mm-18000mm
IS 2062 Equivalent Material
| Material Grade |
EN 10025 (90) |
EN 10025 (93) |
BS 4360 |
NFA 35-501 |
DIN 17100 |
| IS 2062 Grade B |
Fe 430C |
S275J0 |
43 C |
E28-3 |
St 44-3U |
IS 2062 Gr B Chemical Composition
| Grade |
C |
Mn |
S |
P |
Si |
| IS 2062 Gr B |
0.22 |
1.5 |
0.045 |
0.045 |
0.4 |
IS 2062 Gr B MS Plates Mechanical Properties
| Grade |
Yield strength (Mpa)(Min) |
Tensile strength (Mpa)(Min) |
Elongation (%) |
IMPACT (Min) |
| ＜20mm |
20mm-40mm |
＞40mm |
| IS 2062 GR B |
250 |
240 |
230 |
410 |
23 |
27J at 0 ° C |
ASTM A36 Steel Plate Specification :
Item : Carbon Structural Steel Plates - ASTM A36
Thickness : 5mm-150mm
Width : 1000mm-4500mm
Length : 3000mm-18000mm
ASTM A36 Carbon Steel Plate Equivalent Grades
| EN |
USA |
GB |
BS |
JIS |
ISO |
IS |
| Fe360D2, S235J2G4 |
A36 |
Q235D |
40EE |
SM 400 A |
Fe 360B |
IS 226 |
A36 Chemical Composition
| Grade |
C |
Si |
Mn |
P |
S |
| ASTM A36 |
0.25 max. |
0.4 max. |
0.8-1.2 |
0.035 max. |
0.035 max. |
ASTM A36 Steel Plates Mechanical Properties
| Tensile strength, kis [MPa] |
Yield strength, min, kis [MPa] |
Elongation in 8 in. [200 mm], min, % |
Elongation in 2 in. [50 mm], min, % |
| 58-80 [400-550] |
36 [250] |
20 |
23 |
