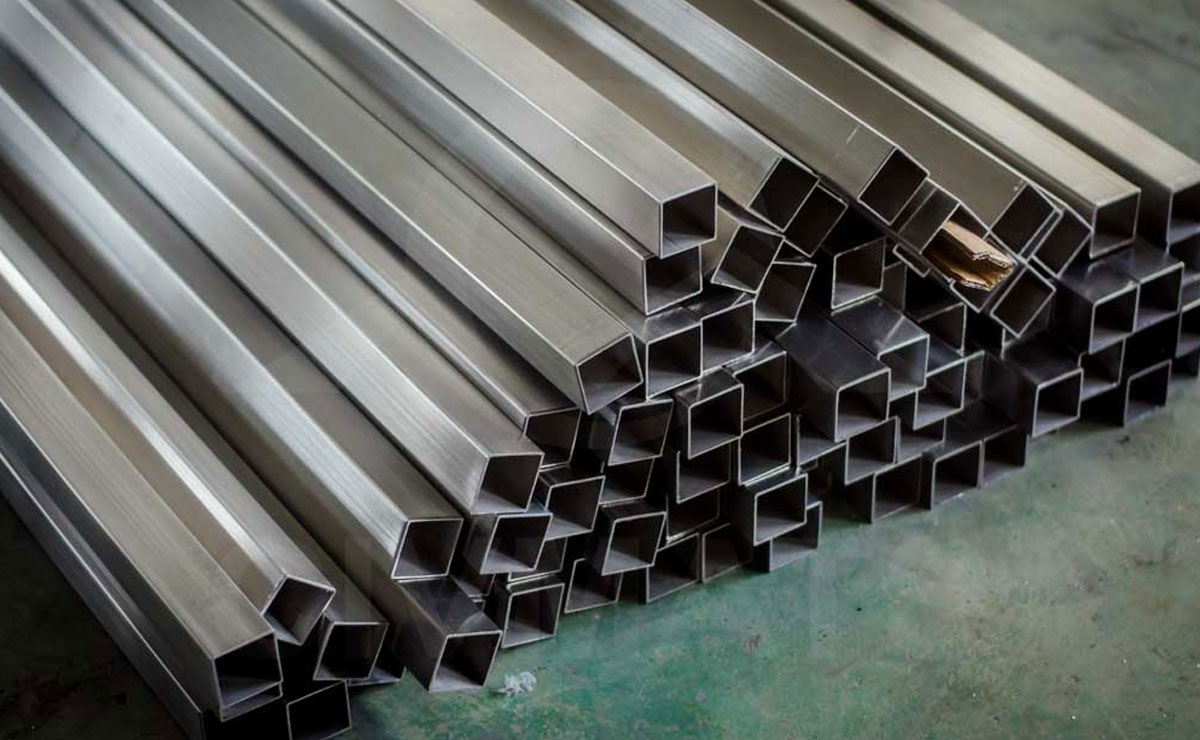

Stainless Steel Square Tubes

  • Home
  • Products

The material is strong and corrosion resistant to mild corrosive agents. It has 205MPa minimum yield strength and 515MPa minimum tensile strength and 870 degrees Celsius operating temperature. However, the 316 Stainless Steel Square Tube Sizes are used in aqueous conditions and in chloride ion rich environment because the 304 grade does not have enough corrosion resistance against the chloride ion corrosion. The 316 material has added molybdenum to overcome this obstacle.


Astm A554 Grade Mt304 Tube Specification List

Pipe Size 12.75 X 12.75, 15 X 15, 20 X 20, 25 X 25, 30 X 30, 40 X 40, 50 X 50, 60 X 60, 75 X 75, 80 X 80, 90 X 90, 100 X100
Grades TP - 304/L/H, TP - 316/L/H/Ti, TP - 317L, TP - 321/H, TP - 347/H, 202, JT - 7, J4 - 1, TP - 409/L, TP - 410, TP - 430Ti, TP 439
Standards ASTM A249 - A269 - A312 - A358 - A409 - A554 - A778 - A789 - A790
TOLERANCE on Length Commercial Length: 6000mm +/- 30mm
Fix Length: from 1200 mm up to 12000mm with a tolerance up to -0/+ 5mm
Finish Polished Grit 120 - 600, Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1mm,Mirror Polished

Chemical Composition of Stainless Steel Welded Square Pipes

STAINLESS STEEL PIPE GRADES UNS C Mn P S Si Cr Ni Mo Ti Nb N
TP304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0
TP304L S30403 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0
TP316 S3160 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0
TP316L S31603 0.035 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.0-3.0

Mechanical Analysis of 304 Stainless Steel Square Pipe

Material Heat Temperure Tensile Strength Yield Strength Elongation %, Min
Treatment Min. Ksi (MPa), Min. Ksi (MPa), Min.
º F(º C)
TP304 Solution 1900 (1040) 75(515) 30(205) 35
TP304L Solution 1900 (1040) 70(485) 25(170) 35
TP316 Solution 1900(1040) 75(515) 30(205) 35
TP316L Solution 1900(1040) 70(485) 25(170) 35
